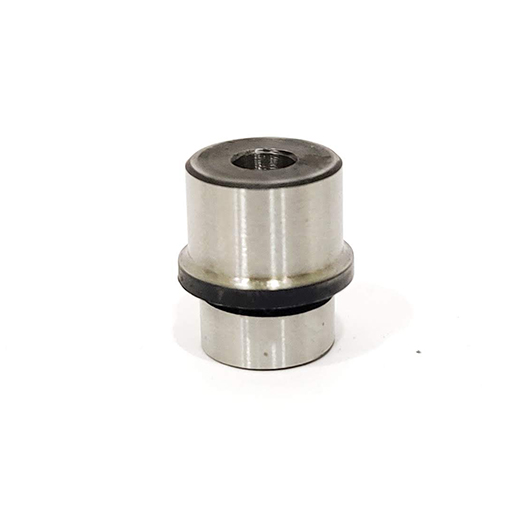

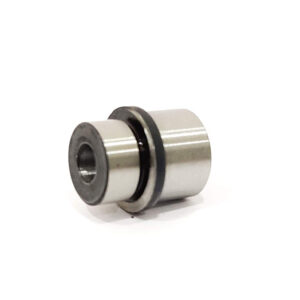

Special Bushes

Sometimes the centre of the drilled holes is placed so close to each other that it is impossible to provide any drill bushes in the jig plate. Under such circumstances, a combined plate-type of bush is used. The plate bush is made of Tool Steel. Several bushes can be combined into a single plate bush. The plate bush is screwed and dowelled to the jig plate.

Order Example:
Product Specification with diagram prints.
